LCD Touchscreen Thermostat Programmable Electric Floor Heating System AC 110V 220V Temperature Controller for Home

$14.57 AUD

~~$0.00 AUD~~ $14.57 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Certification: CE

Choice: yes

• LCD Touchscreen :The thermostat features an easy-to-use LCD touchscreen that allows you to control the temperature with ease.

• Programmable :You can program the thermostat to turn on and off automatically, making it easy to save energy and keep your home comfortable.

• Electric Floor Heating System :The thermostat is compatible with electric floor heating systems, allowing you to control the temperature of your floors.

• Temperature Controller :The thermostat accurately controls the temperature in your home, ensuring that you're always comfortable.

Features

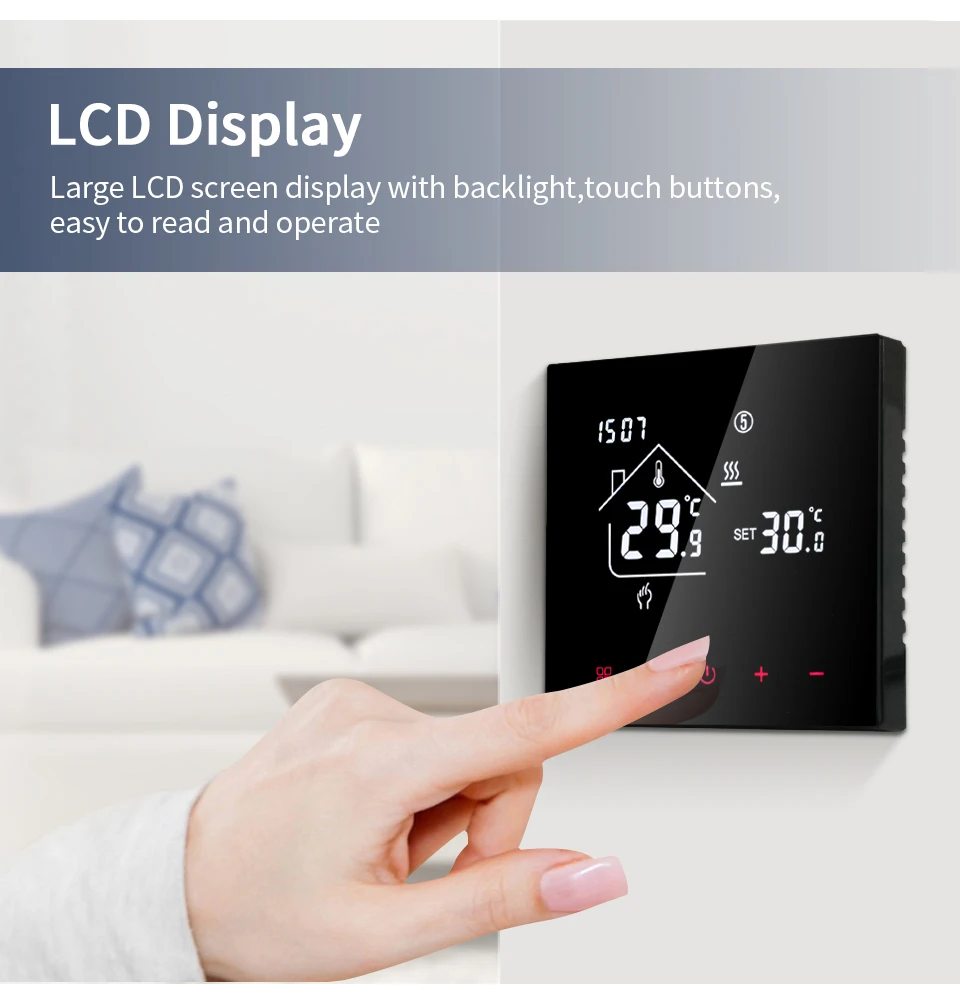

* LCD Touch Display: Elegant appearance, one face design, anti-scratch. Large LCD touch screen display with back light, easy to read.

* Manual/ Auto Mode: Free to choose manual mode or auto mode for different purposes.

* Accurate Temperature: Internal sensor floor sensor, perceptive ambient temperature and the floor's temperature. Automatically obtain the temperature, 1°C accuracy.

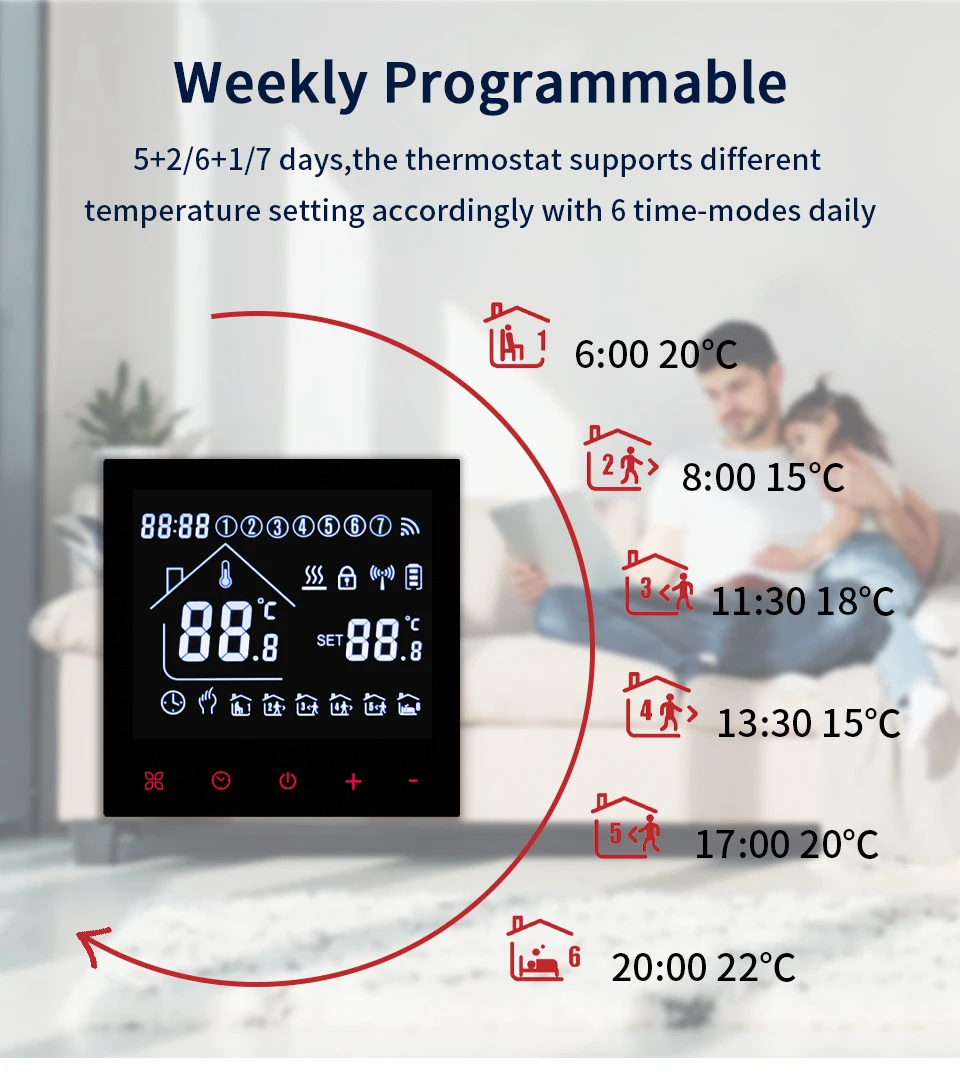

* Weekly Programmable: The thermostat supports different temperature setting accordingly with 6 time-modes daily.

* Memory Function: No need to worry about power failure, data memory when power is off.

* Children Lock: Keypad locking function is designed to prevent children from operating by mistake.

* Application: Suitable for electric heating/water gas boiler/water heating.Perfect for home, office, shopping mall, hotel, etc.

Specifications

Type: No Wi-Fi

Color: Black

Rated Voltage: AC 100-250V 50/60Hz

Max. Current Load: 16A/3A/3A (Optional)

Accuracy: ± 1 ℃ / ± 33.8 ℉

Probe sensor: NTC10K1%3950

Temperature Range: 5-45 oC

Power Consumption: <2W

Timing Error: <1%

Shell Material: PC (Flame Retardant)

Sensors: Built in sensor for measuring room temperature and external sensor for high temperature protection

Installation Distance: 60mm

Protection Class: IP20

Buttons: Touch Buttons

Item size: 86*86*40mm/3.4*3.4 * 1.6in

Item Weight: 168g / 5.9oz

Package Size: 10*9.5*6cm/3.9*3.7 * 2.4in

Package Weight: 282g / 10.0oz

Please Note

Only the 16A thermostat includes an external temperature sensing cable.

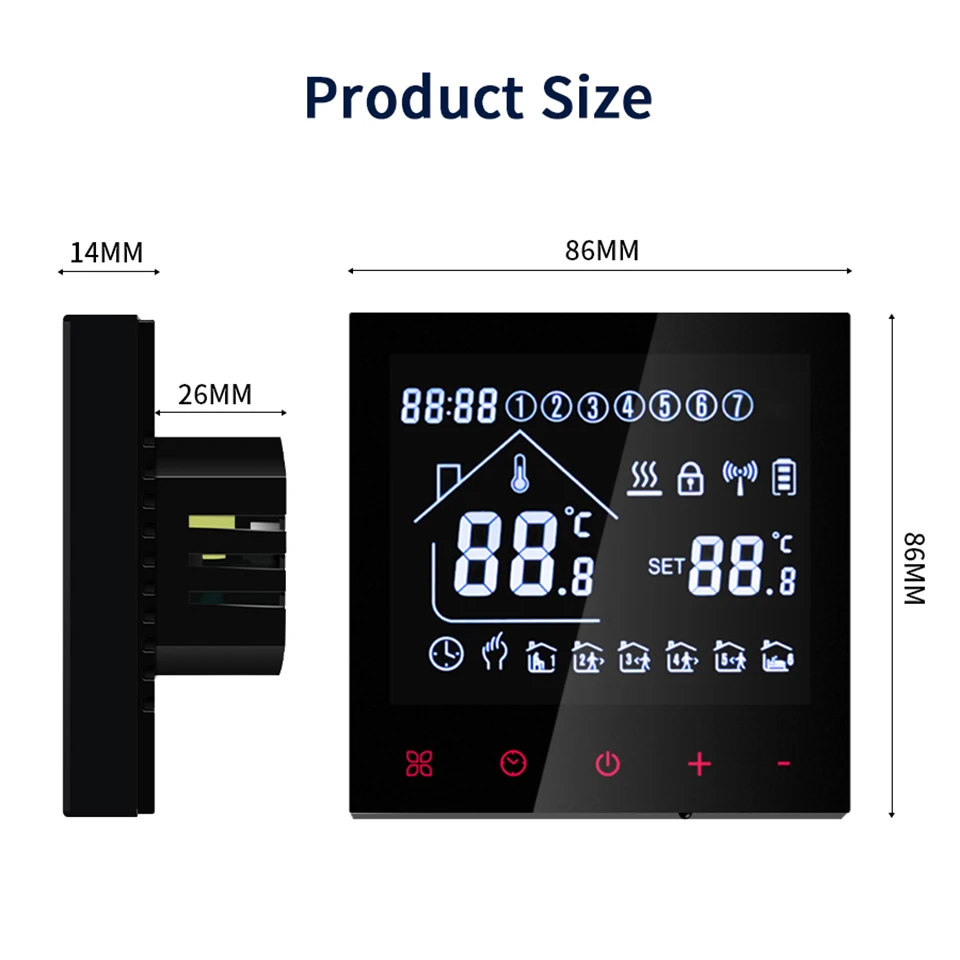

Size:

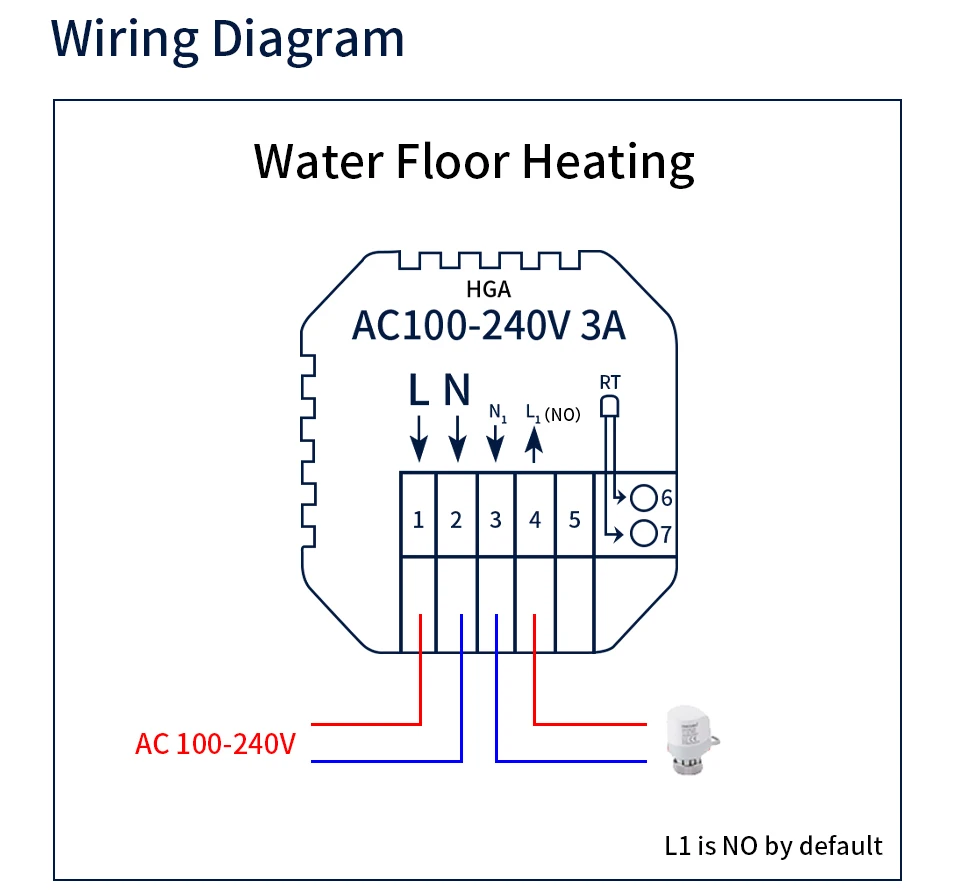

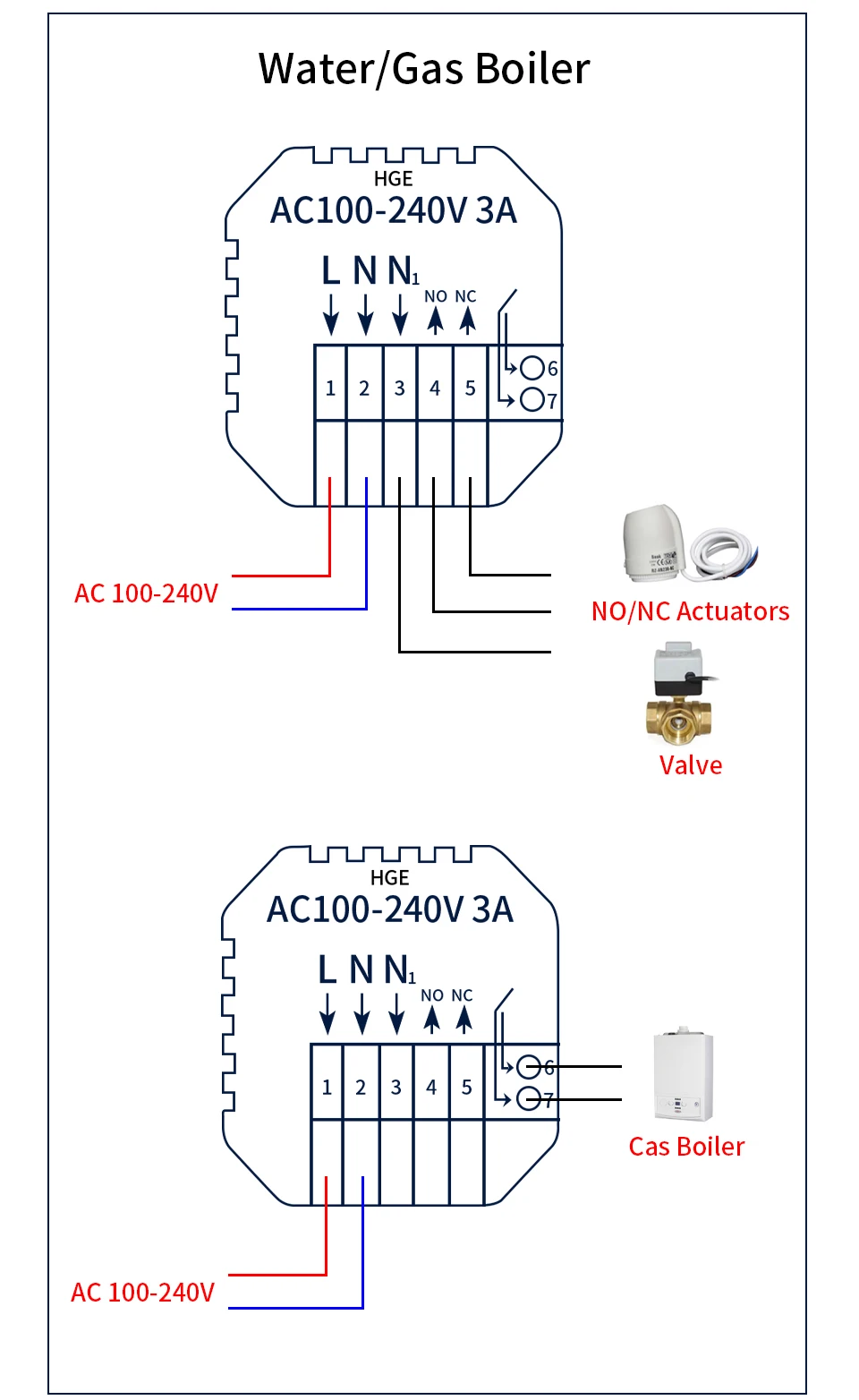

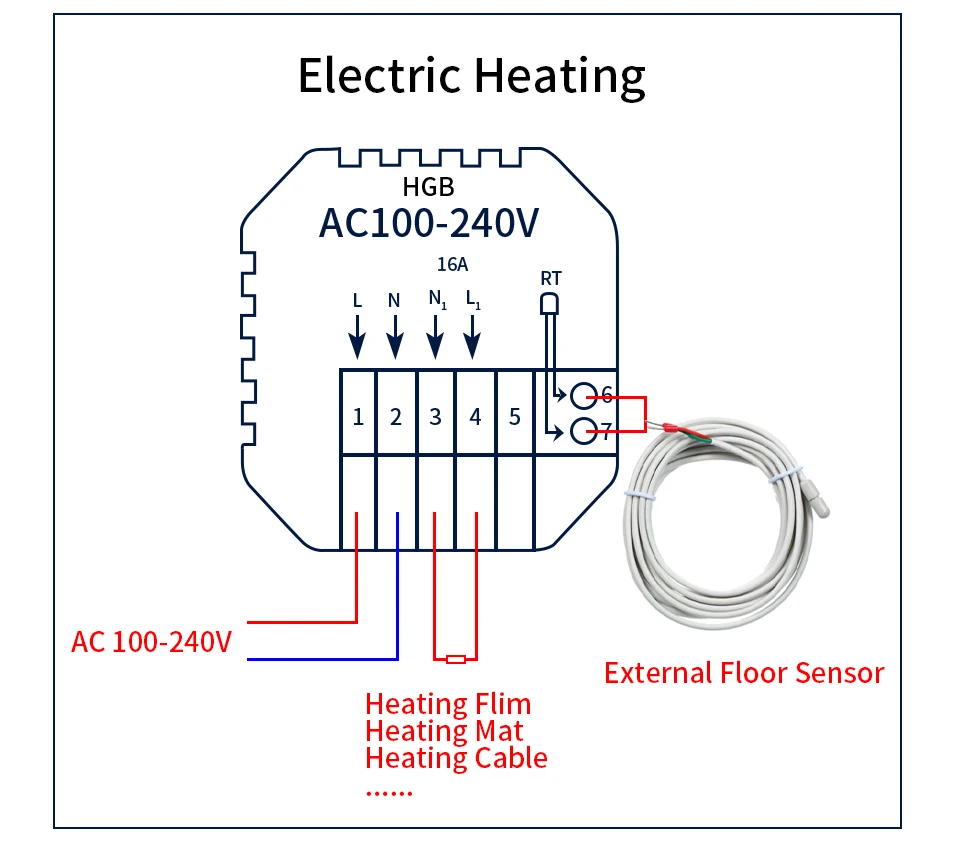

Wiring Diagram for water heating Temperature ControllerWiring Diagram for electric heating Temperature ControllerWiring Diagram for water/Gas heating Temperature ControllerPackage list:
